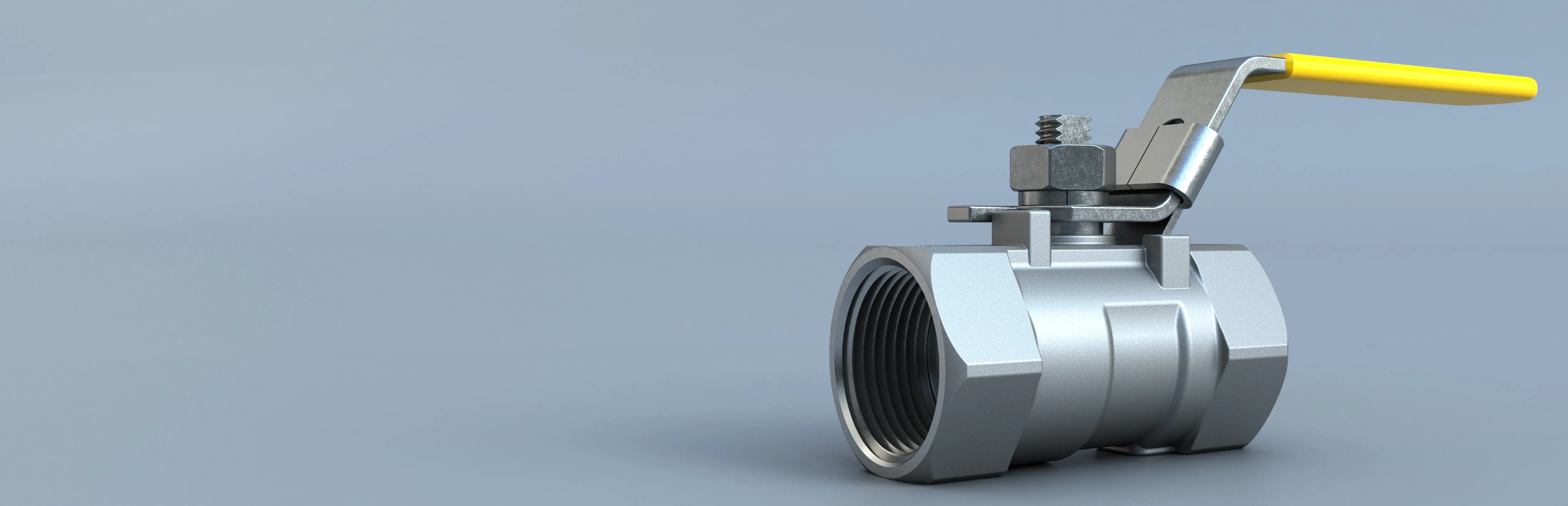

Threaded Ball Valve S40 Flow-tek Bray International https://www.bray.com/images/default-source/products/flow-tek/s40/s40_1inch_homehero_-min.jpg?sfvrsn=2235f35a_4

Threaded Ball Valve

S40

Size Range
¼ - 2" (8 - 50mm)
Temperature Range
-50°F to 450°F (-46°C to 232°C)
Pressure Rating
1000 psi WOG (69 Bar)

Specifications

Threaded Ball Valve - S40

Size Range
¼ - 2" (8 - 50mm)
Body Materials
ASTM A351 Gr CF8M
Temperature Range
-50°F to 450°F (-46°C to 232°C)
Stem Materials
ASTM A479 Type 316
Pressure Rating
1000 psi WOG (69 Bar)
Seat Materials
RPTFE
Shutoff Rating
Zero Leakage
Ball Materials
ASTM A479 Type 316
Body Style
One Piece
Design Standard
MSS SP-110
End Connections
Threaded ASME B1.20.1 NPT
Testing Standard
MSS-SP72
Ports
Reduced Port
Face to Face
Manufacturers Standard
Applications
General Service, Air, Water, Oil & Gas

Features & Benefits

Flow-Tek's Model S40 threaded ball valves add an economical, compact, one piece body design ball valve to the Bray product lineup. The one piece body supplies maximum structural strength while minimizing the number of potential leak paths. Model S40 valve bodies are high quality investment cast 316 Stainless Steel.

S40 valves feature quarter turn operation, bottom entry blowout proof stems and low operating torque.

A variety of handle designs, such as standard locking lever, optional oval and optional butterfly, are available for ease of operation or safety applications.

Testing

  • All valves are tested in accordance with MSS-SP72
  • Threaded End Connections meet ASME B1.20.1 NPT
  • Vacuum service to 29 inches Hg gauge
