Water & Wastewater

Bray is the leading butterfly valve and actuator manufacturer in water filtration.


Quality Products

Bray International is the world’s premier manufacturer of valve and actuation products for the water/wastewater industry. In most regions of the world, water is a scarce resource and Bray is a leading solution provider of products on a wide variety of treatment systems and installations.


Butterfly, ball, check, knife gate, actuators and control products manufactured by Bray meet the highest industry standards in water and wastewater applications around the globe:

Ground Water

Surface Water

Brackish/Sea Water Desalination


Water Re-Use



Reverse Osmosis

Biological Treatment


Bray International Butterfly and Ball Valves


All Products that can be applied for Water & Wastewater

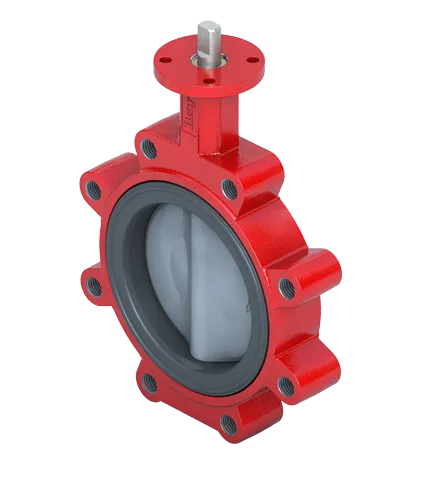

Resilient Seated Butterfly Valves Series 30/31

Resilient Seated Butterfly Valve

Series 30/31

McCannalok High Performance Butterfly Valve

High Performance Butterfly Valve

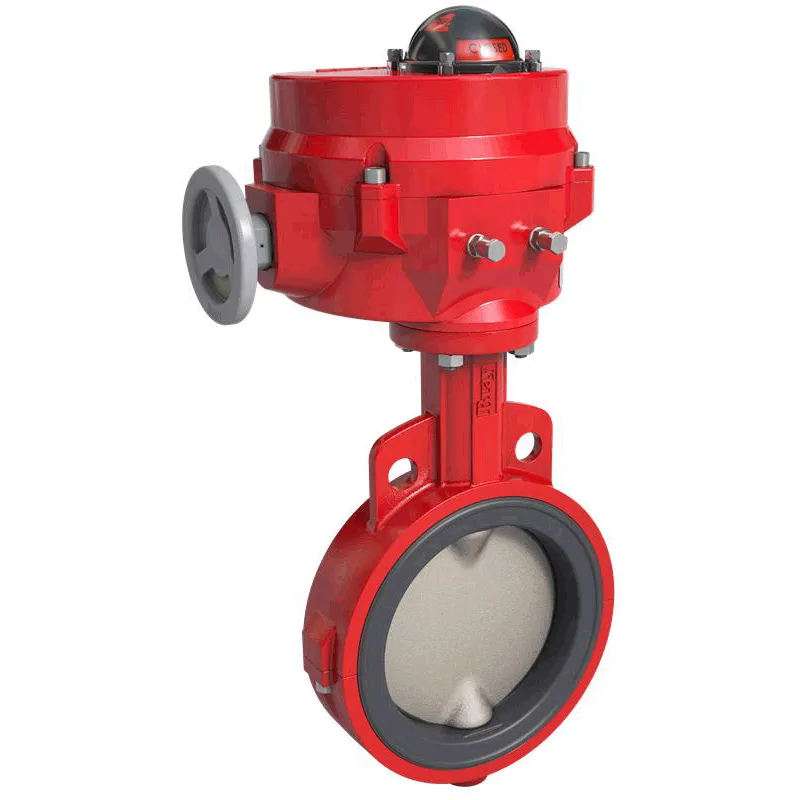

Resilient Seated Butterfly Valves Series 20/21

Resilient Seated Butterfly Valve

Series 20/21

Resilient Seated Butterfly Valves Series 35/36

Resilient Seated Butterfly Valve

Series 35/36

Resilient Seated Butterfly Valves Series 32/33

Resilient Seated Butterfly Valve

Series 32/33

Resilient Seated Butterfly Valves Series 35F

Resilient Seated Butterfly Valve

Series 35F

Valves suited for the purpose

Resilient Seated Butterfly Valves

With many states in long-term droughts and experiencing depleted aquifers, wastewater reuse is becoming more and more a viable option for water supply. This leaves growth potential for manufacturers of valve products suited for the purpose. Bray resilient-seated valves are well suited, ideal for:
  • In applications up to 250 psi for valves up to 12 inches and 150 psi for 14 inch and larger.

  • Temperatures up to 250 degrees F and pipeline velocities at or below 30 feet per second.

High performance valves


Higher temperatures and water velocities may be achieved through the use of the Bray/McCannalok series high performance valves.
  • Pressure ratings comply with ASME Class 150, 300 and 600.

  • Temperatures up to 450 degrees F.

  • Featuring superior materials for erosive and corrosive services including water velocities higher than 30 feet per second.

The strength of Bray valves

Zero Leakage

Part of the strength of Bray valves is that they offer three disc-to-stem connections; Double ‘D’, Splined, and Double Key. These internal non-wetted connections eliminate typically exposed external disc-to-stem connections such as screws or taper pins. Disassembly of Bray’s internal connection is performed by simply pulling the stem out of the disc. Bray’s precision machining of the disc and the stem connection minimizes hysteresis and produces maximum strength engagements. All stem designs incorporate a blow-out proof feature.

Scotch Yoke Pneumatic Actuator Series 98

Scotch Yoke Pneumatic Actuator

Series 98

Positioner Series 6A


Series 6A

Switch Box Series 5A

Switch Box

Series 5A

Switch Box Series 5B

Switch Box

Series 5B

Electric Actuator Series 70

Electric Actuator

Series 70

Solenoid Series 63


Series 63

Engineering excellence and precision

Actuators and Accessories

Engineering excellence and precision manufacturing have produced a modular product line with reduced overall size requirements and economic savings. In addition, all Bray Accessories are fully modular and directly mount to the actuator – providing flexibility and efficiency at reduced cost.

Pneumatic actuators

Series 98

The Series 98 actuators were designed primarily for pneumatic operation to a maximum pressure of 150 psi (10.3 Bar) and for temperature ranges of -50°F (-46°C) to 300°F (+149°C).
  • Compact design offers a high torque to weight ratio

  • Modular Design offers easy configuration in the field

  • Module alignment ensured by precision machined centering rings

  • Premium epoxy/polyurethane coating as standard

  • Torque Output ranging from 2,744 to 885,100 in-lb (310 to 100,000 Nm)

  • Spring End Torque ranging from 2,744 to 445,261 in-lb (310 to 50,306 Nm)

Electric actuators

Series 70

Bray Controls years of proven success in electric actuation, combined with innovative engineering, has produced the Series 70. The Series 70 features on-off or modulating control. This electric actuator for rotary valves delivers highly reliable service.
  • Stainless steel mechanical travel stops.

  • Infinitely adjustable travel limit cams.

  • Optional torque limiting switch system.

  • Servo operation can be configured to accept standard input signals.

Certified & Trusted

By thousands of companies worldwide

Bray houses a state of the art Class 1000 clean room for production, assembly, cleaning, and bagging of ultra-clean valves for use in high purity applications. This facility meets the US Federal Standard 209E for Class 1000 airborne particles. Bray valves for ultra-pure service include a fully lined body and disc which isolates all other valve parts from the media, and are available with UHMWPE trim. Extensive field research and engineering have developed state-of-the-art valves which provide:
  • Excellent shut off protection (bubble-tight shut off)

  • And high Cv values.

In addition, Flow-Tek, one of Bray’s many specialty divisions, produces a full line of ball valves for ultrapure water service which can be tested, cleaned and certified. Flow‐Tek’s technologically advanced ball valve design is the product of a highly evolved research and development program.

Bray is superior to others in part because of its fully diverse line of products used in every facet of water filtration and wastewater treatment. The breadth of products, quality control, and all Bray-owned facilities make Bray products exceed all competitors. With a focus on maintaining consistency and reliability, suppliers of components, materials, and services are included in the design process.


Bray Resilient Seated Butterfly Valves are designed, manufactured and tested to meet or exceed AWWA C504, Section 5.0 performance criteria.

Bray Resilient Seated Butterfly Valves approved and certified worldwide for potable water applications


Our performance tested products are in compliance with a variety of global certifications and approvals, including Lloyd's Register, UL, ABS and more.
