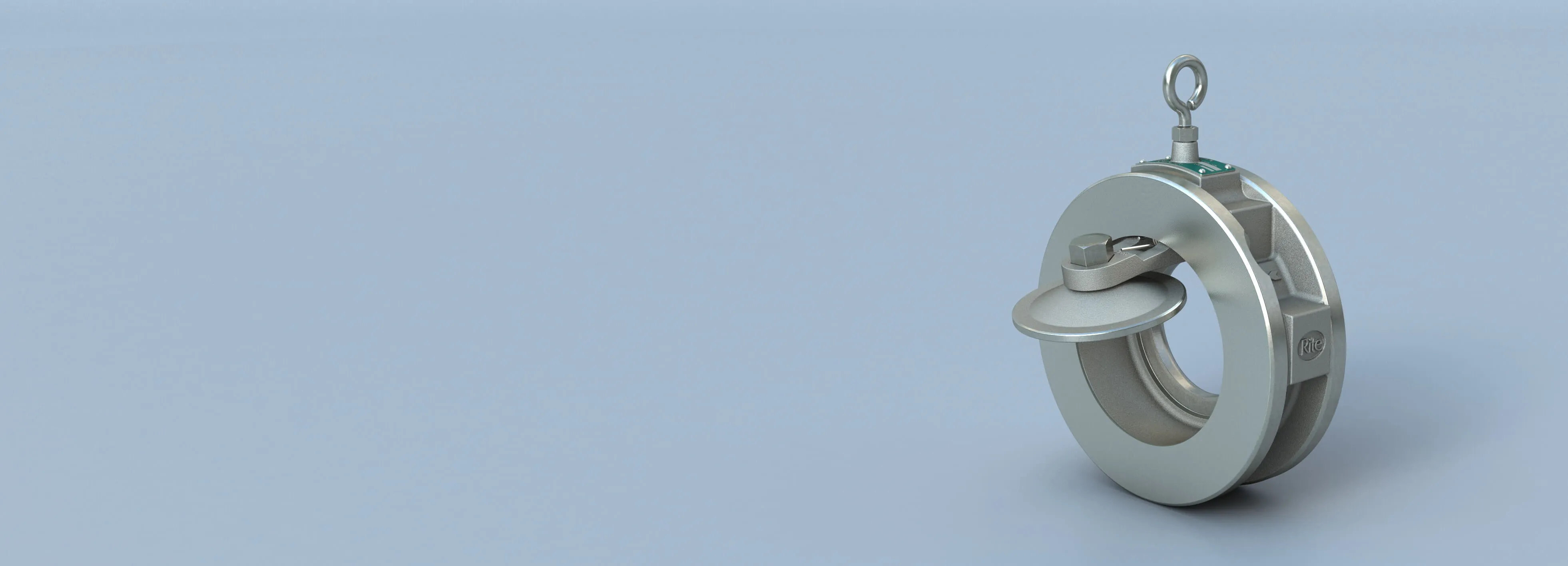

Check Valve

Bray/Rite

Size Range
1" to 60" (25mm to 1500mm)
Temperature Range
Cryogenic to High Temperature (Pending Model Selected)
Pressure Ratings
API 594 (150, 300, 600, 900, 1500, 2500)
ASME (125, 150, 300)
PN (10, 16, 25, 40)

Specifications

Check Valve - Bray/Rite

Size Range
1" to 60" (25mm to 1500mm)
Body Materials
ASTM A 126 CLB, ASTM A 395, ASTM A 216 WCB, ASTM A 351 CF8M, Titanium
Temperature Range
Cryogenic to High Temperature (Pending Model Selected)
Spacer Materials
PTFE, SS316
Pressure Ratings
API 594 (150, 300, 600, 900, 1500, 2500)
ASME (125, 150, 300)
PN (10, 16, 25, 40)
Seat Materials
BUNA-N, EPDM, A240 - 304 (Inserted or Integral), PFTE, Viton
Shutoff Rating
Zero Leakage
Disc Material
SS316 as standard (or Higher Grade)
Body Style
Wafer, Flanged, RTJ
Design Standard
API 594, ASME B16.34
Certifications
API 6FD, CE, CRN, FM, NSF-61, PED, ULC
Testing Standard
API 598, ASME B16.34
Face to Face
ANSI, API 594
Applications
Pump Protection, Water Hammer Reduction
Models
201, 203, 205, 210, 211, 212, 260, 312
Accessories
H-100, SA-01, SA-1, SA-2, SA-10, SA-16, SA-40, SA-50

Features & Benefits

Bray/Rite wafer combination swing check valves are flow activated and Rite Sized. Bray/Rite inlet ports and disc have been shape optimized to achieve a fully open position at low flow rates (3 ft/s on average). Therefore, the Bray/Rite operates exceptionally well in the flow rates typically found in pipelines containing control valves and lines with varying media flows.

Compare the Bray/Rite to typical full-sized swing check valves-- Due in part to their oversized, heavier discs, these valves only fully open at an average flow rate of 11 ft/s. When activated at a lower flow rate, these valves loose true controllability and do not fully open. A partially open disc creates an obstruction that produces a higher pressure drop and fluttering of the valve disc - disturbing the flow and increasing the chance of water hammer.

Bray/Rite is Rite Sized to eliminate these problems. It has been engineered to accelerate line media through the valve and achieve a virtually unobstructed full opening in low pressure. Rite Sized, combined with the limited movement of internal parts during operation, reduces wear – enhancing the long service life of a Bray/Rite valve.
