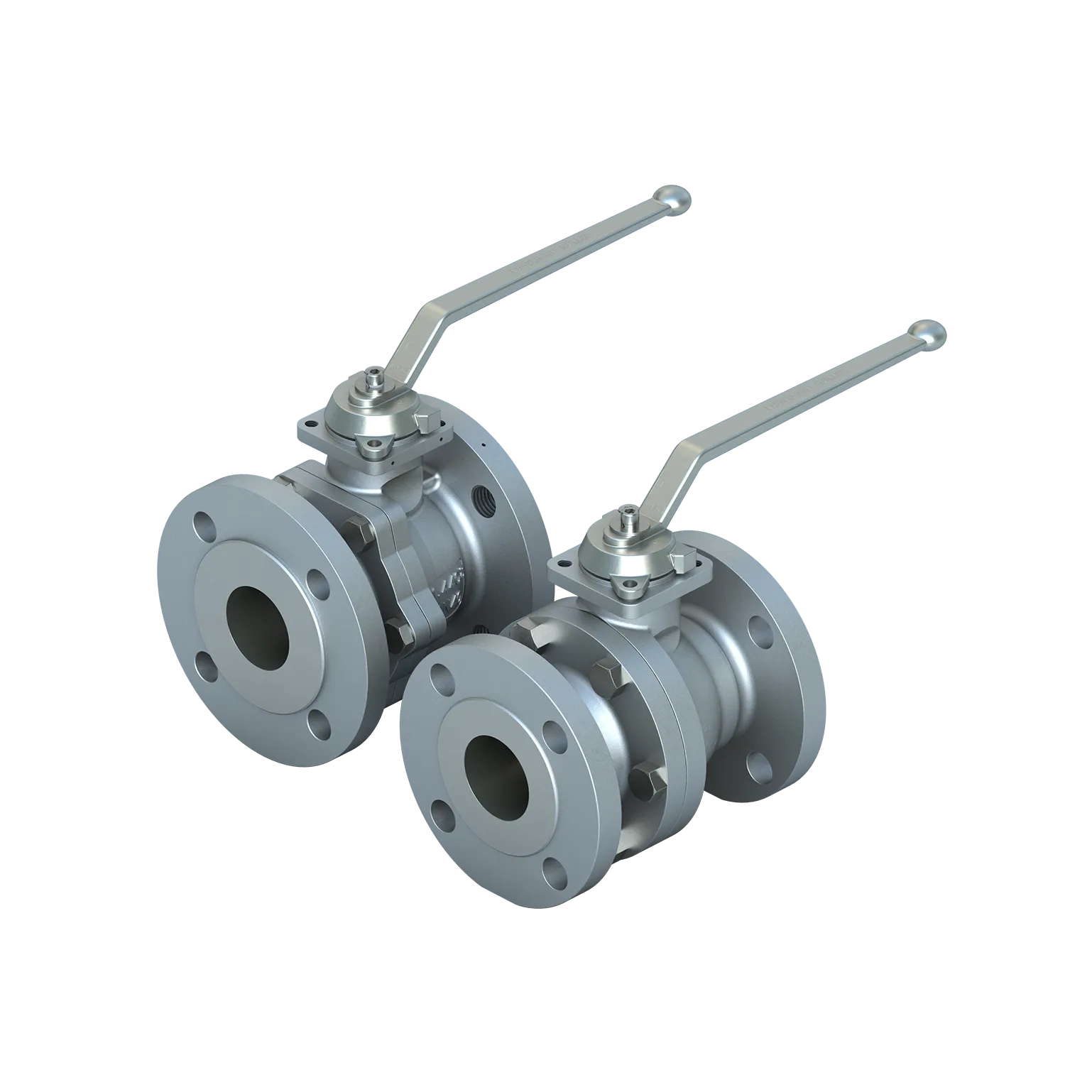

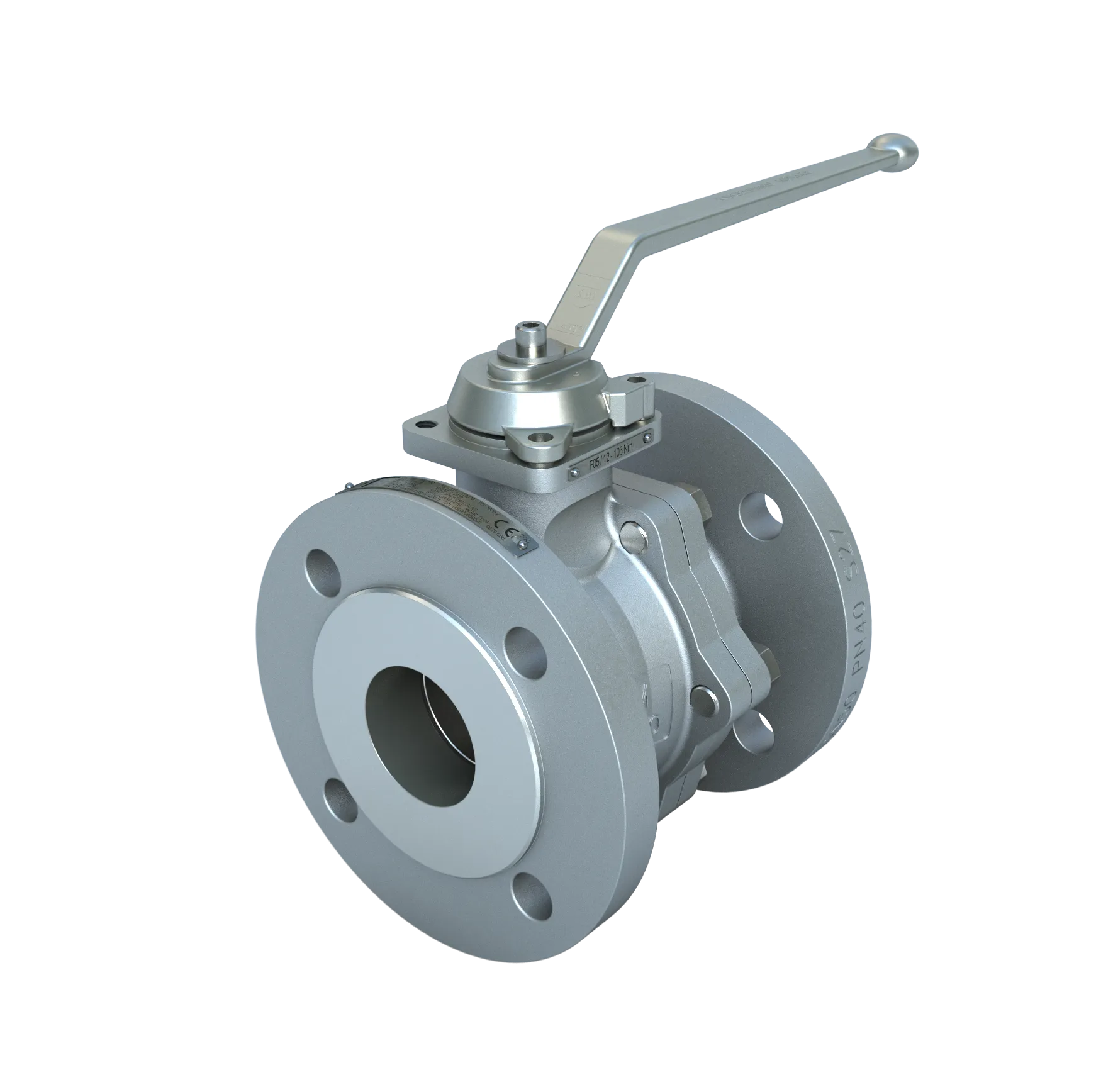

Flanged Ball Valve
KM 20/21
Specifications
Flanged Ball Valve - KM 20/21
EN 12266 Rate A
Features & Benefits
-
A. Hand Lever
Stainless steel lockable hand lever with a position indicator.
-
B. Body
Robust two-piece body design suitable for heavy-duty applications in multiple industries. A wide range of flange connections are available.
-
C. Ball
Floating full bore design made of polished stainless steel.
-
D. Seat
Seat design ensures bidirectional zero-leakage sealing under all pressure and temperature conditions.
-
E. Stem
Heavy-duty, blowout-proof stem with “Double D” connection according to ISO 5211 for mounting of various hand levers, adapters, actuators and stem extensions.
-
F. Body Seals
Chambered body seal design to ensure outstanding sealing integrity.
-
G. Stem Packing
Custom designed high integrity stem packing arrangement that combines a self-adjusting primary and secondary seal in order to ensure consistent torque and hightest possible tightness according to ISO 15848-1.
-
H. PTFE Packing
The PTFE sealing system features a preloaded Belleville spring design with the benefit of optional re-adjustement.
-
I. O-Ring Packing
The O-Ring sealing system features an O-Ring arrangement of at least three O-Rings.
