Bray Series 80 full Port Ball Valves have been designed to meet the needs of the chemical, textile and process industries. Series S80 two-piece valve bodies are investment cast and solution annealed stainless steel for the for the highest quality and added strength. All body castings are marked with a foundry heat number for full traceability.
Series 80 ball valves feature a full port design for smooth flow characteristics and minimum pressure drop while the internally installed blowout proof stem and adjustable stem packing ensure a tight seal and low operating torque. NPT, BSPT and BSPP threaded end connections are available.
Equipped with stainless steel safety latch handles, the Series S80 valves offer an additional layer of safety by ensuring the valve remains securely in position during operation. An optional oval handle is available for customized handling preferences.
With an industry leading warranty and Bray's reputation for quality and service after the sale, Bray's series 80 full port ball valves are an excellent choice for chemical, textile and process industries, as well as general service high pressure applications.

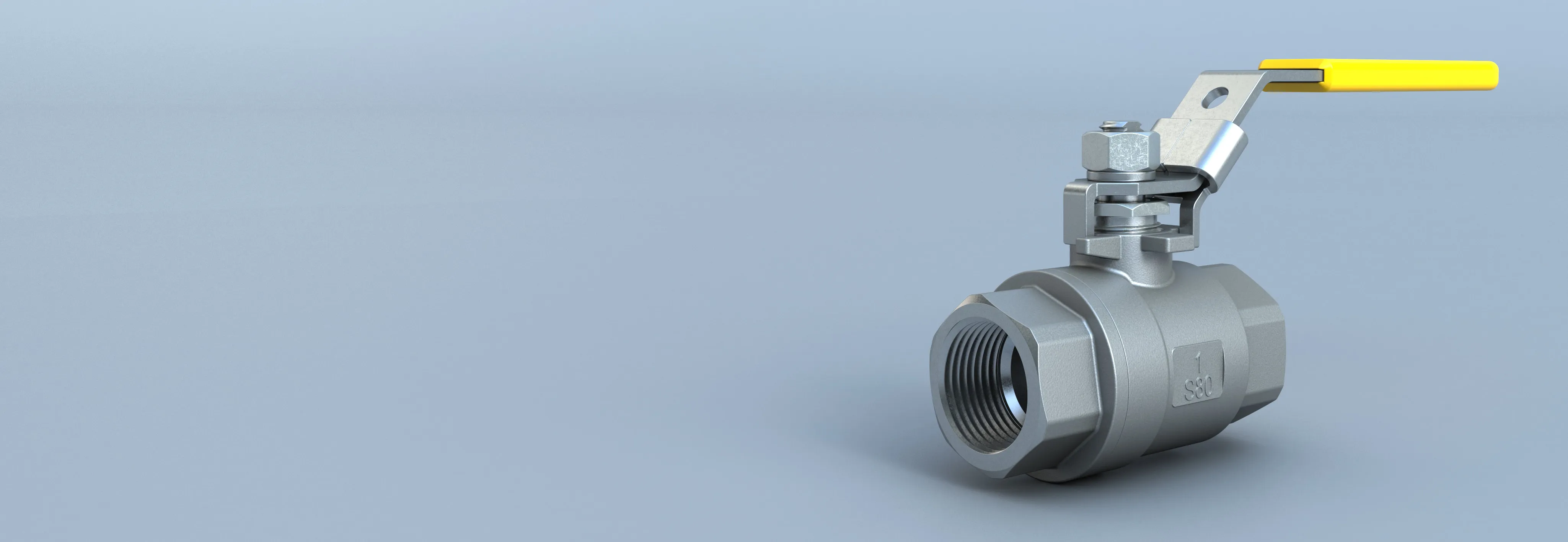

Threaded Ball Valve
Series S80
Size Range
¼ - 4" (8 - 100mm)
Temperature Range
-50°F to 450°F (-46°C to 232°C)
Maximum Allowable Operating Pressure
1000 psi WOG (69 Bar)
Specifications
Threaded Ball Valve - Series S80
Size Range
¼ - 4" (8 - 100mm)
Body Materials
ASTM A351 Gr CF8M
Temperature Range
-50°F to 450°F (-46°C to 232°C)
Stem Materials
ASTM A479 Type 316
Maximum Allowable Operating Pressure
1000 psi WOG (69 Bar)
Seat Materials
RPTFE
Shutoff Rating
Zero Leakage
Ball Materials
316SS
Body Style
Two Piece
Design Standard
MSS SP-110
End Connections
Threaded - NPT
Testing Standard
MSS-SP 72
Ports
Full Port
Face to Face
Manufacturers Standard
applications
General Service, Air, Water, Oil & Gas
