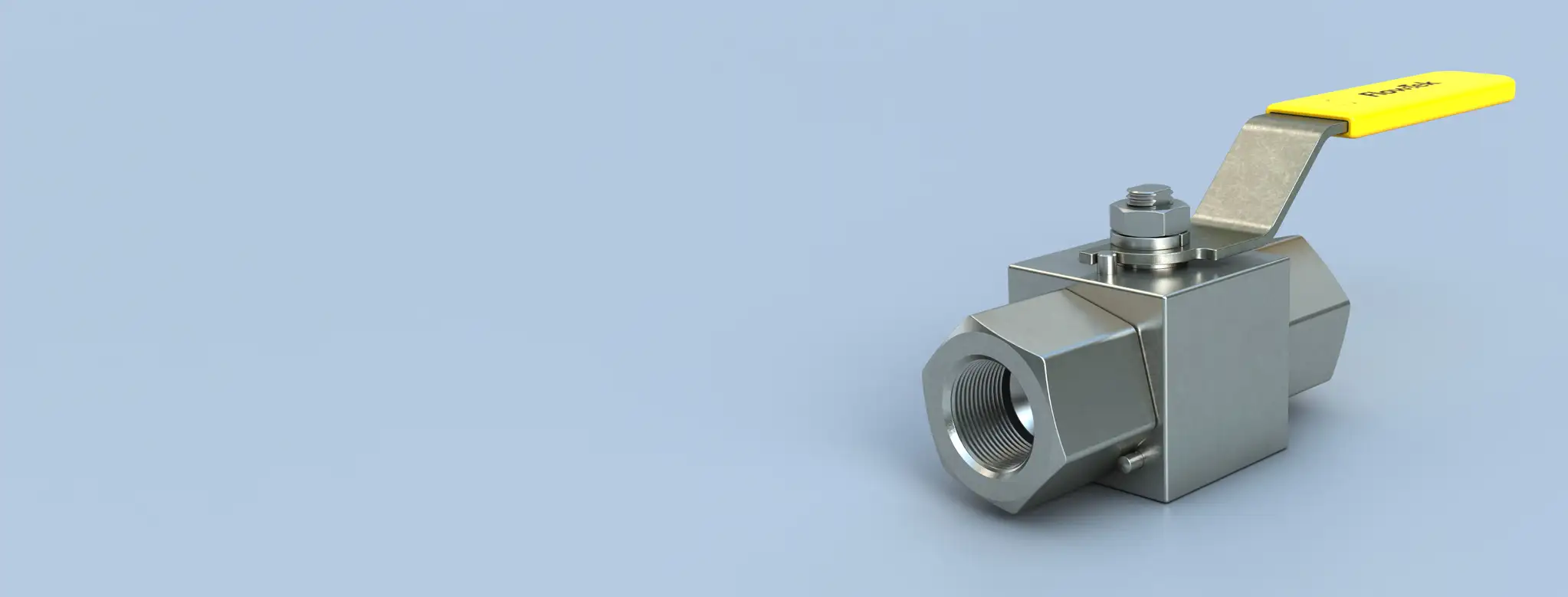

Threaded Ball Valve Model HP/HX Bray https://www.bray.com/images/default-source/products/flow-tek/hp-hx/hp-hx_homehero-3.jpg?sfvrsn=a6f1527a_4

Threaded Ball Valve

Model HP/HX

Size Range
HP: ¼ - 1" (8 - 25mm)
HX: ¼ - ½" (8 - 15mm)
Temperature Range
HP: -40°F to 280°F (-40°C to 138°C)
HX: -29°F to 500°F (-34°C to 260°C)
Pressure Rating
HP: 6,000 psi WOG
HX: 10,000 psi WOG

Specifications

Threaded Ball Valve - Model HP/HX

Size Range
HP: ¼ - 1" (8 - 25mm)
HX: ¼ - ½" (8 - 15mm)
Body Materials
316 Stainless Steel
Temperature Range
HP: -40°F to 280°F (-40°C to 138°C)
HX: -29°F to 500°F (-34°C to 260°C)
Stem Materials
316 Stainless Steel
Pressure Rating
HP: 6,000 psi WOG
HX: 10,000 psi WOG
Seat Materials
HP: PVDF
HX: PEEK
Shutoff Rating
Zero Leakage
Ball Materials
316 Stainless Steel
Body Style
Three Piece
Design Standard
ASME B16.34
End Connections
Standard: Threaded - NPT, Optional: Compression Fittings
Testing Standard
API 598
Ports
Standard Port
Face to Face
Manufacturers Standard
Applications
General Service, Air, Water, Oil & Gas

Features & Benefits

Flow-Tek's Instrumentation Series threaded ball valves, including the Series HP and Series HX ball valves, offer rugged reliability for high pressure and instrumentation applications. The valves feature three piece bodies designed for flexibility of installation and ease of maintenance. Both models HP and HX are constructed as standard with 316 stainless steel bodies manufactured to NACE specifications. Other body materials are available such as Duplex SS, Hastelloy®, Monel and Titanium. All bodies are marked with a heat code for full material traceability.

A floating ball design provides a positive, bubble-tight shutoff with smooth quarter turn operation at low operating torque. Additional Instrumentation Series advantages include a choice of lever or pointer handles, travel limit stop pins and replaceable seats and seals. Locking kits which secure the valve in a desired position are also available.

Safety features include an internally loaded blowout proof stem and end connections that are pinned to prevent inadvertent loosening or disassembly.
