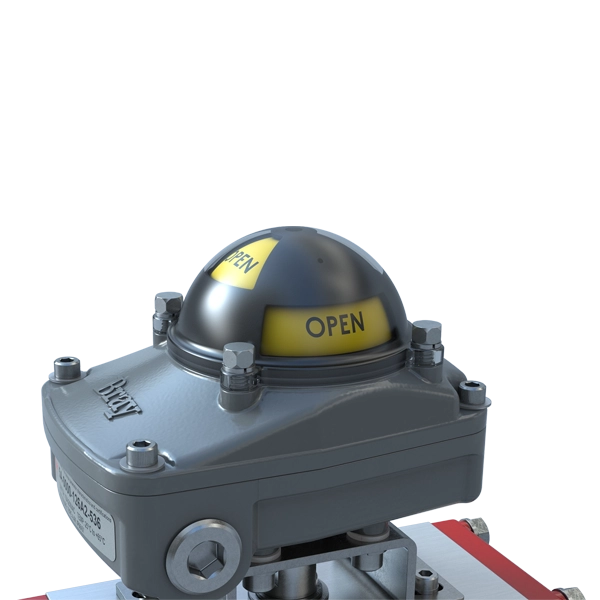

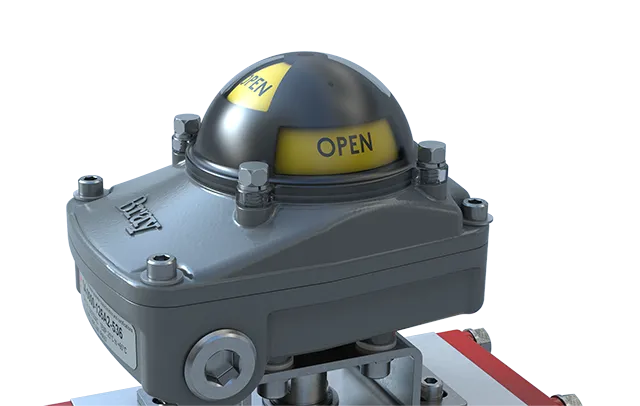

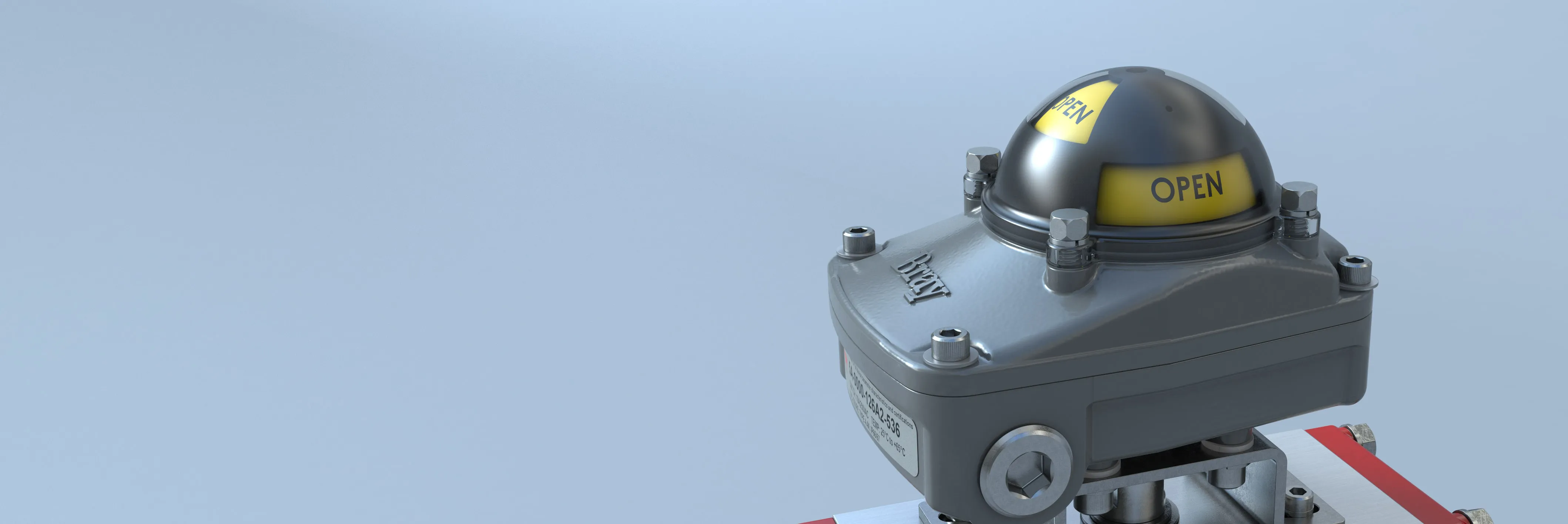

Valve Status Monitor Series 5A Bray International https://www.bray.com/images/default-source/products/controls/s5a/s5a_92-93_mccannalok-s40_41_8in_homehero_0100-min.jpg?sfvrsn=458d5229_4

Switch Box

Series 5A

Certifications
Standard: cULus, CE
Optional: ATEX, IECEx
Enclosure Ratings
IP66/67, NEMA 4/4X, UL50E Salt Spray
Switch Options
Mechanical: SPDT Switch, SPDT (Low Power)
Proximity: PNP, NPN, 140V 2-Wire, 250V 2-Wire, Reed Switch
NAMUR Intrinsically Safe

Specifications

Switch Box - Series 5A

Area Classifications
Class I, Division 1, Groups A, B, C & D, T6
Class II, Division 1, Groups E, F & G, T85 C
Communication Protocols
None
Enclosure Ratings
IP66/67, NEMA 4/4X, UL50E Salt Spray
Visual Display
High Visibility Indicator
Switch Options
Mechanical: SPDT Switch, SPDT (Low Power)
Proximity: PNP, NPN, 140V 2-Wire, 250V 2-Wire, Reed Switch
NAMUR Intrinsically Safe
Switch Quantities
2
Mounting
F05 pattern ISO5211, VDI/VDE 3845 Compliant (NAMUR)
Temperature Range
-13°F to 149°F (-25°C to 65°C)
Certifications
Standard: cULus, CE
Optional: ATEX, IECEx

Features & Benefits

Valve Status Monitor Series 5A Features

  • A. Enclosure

    The compact low profile weatherproof VSM is UL certified NEMA Type 4, 4x and IP66/67. A die-cast aluminum cover and base coated with a polyester powder coat for exceptional corrosion, wear, impact and ultraviolet resistance.

  • B. High Visibility Position Indicator

    Visual open and closed indication is provided with an impact resistant dome style indicator. Inverting the open and closed visual output is easily done by removing the dome and rotating it 90 degrees. There is no need to remove the cover and expose internal wiring of the VSM to change position indication.

  • C. Stub Shaft Secondary Seal

    Ensures indicator area is separate from the VSM’s internals. Provides a secondary seal to prevent water ingress should the dome or dome seal become compromised due to adverse site conditions.

  • D. Captive Cover Bolts

    The cover is attached to the base by captive stainless steel bolts placed outside the sealing area.

  • E. Protective Washers

    Clear, nonmetallic, corrosion resistant washers are used to ensure coating integrity when cover bolts are tightened.

  • F. O-Ring Seal for Watertight Enclosure

    The O-ring seal between the cover and base provides a weatherproof seal preventing internal corrosion.

  • G. Sensor Cams

    Splined cam design allows for easy and accurate setting of switch activation without the use of tools.

  • H. Limit Switches

    Multiple switch options and configurations to meet connectivity requirements.

  • I. Terminals

    Clearly marked terminal blocks are angled towards the user to ensure easy access.

  • J. Conduit Entries

    Conduit entries available in either imperial or metric threads.

  • K. Grounding

    Green color-coded, easy-access grounding bolt.
