Quality Products
In support of requirements for high performance butterfly valves to US Navy MIL-V-24624, Bray has performed extensive validation including 20,000 cycle endurance testing, shock testing, vibration testing, fire-testing to API 607, throttle and flow testing, and other special testing to both US Navy and private commercial specifications. Alloys supplied for marine applications include
Nickel-Aluminum Bronze
Monel
Superaustenitic SS
Duplex SS
Superduplex SS
Titanium
316 SS
Special designs such as top-entry, in-line repairable triple offset butterfly valves have been developed for LNG carriers. Make Bray your global flow control partner for the Marine and Shipbuilding Industry.
High Performance Butterfly Valve
McCannalok
Triple Offset Butterfly Valve
Tri Lok
Check Valve
Bray/Rite
Resilient Seated Butterfly Valve
Series 31U
3-Piece Ball Valve
Triad
Unidirectional Knife Gate Valve
Series 940
Bray’s products
Market-driven product development
Market-driven product development is fully incorporated during the initial stages of product development. The first step in Bray’s product development process is to reach out to our customers. Bray’s global objectives focus heavily on having, maintaining and increasing customer relationships.
A great amount of emphasis is placed on customer relationship management to ensure there is not only strong communication on the sales side, but also significant influence into the product development efforts as well. It is important to all Bray employees that customers feel very involved in everything Bray does, especially with the products we develop.
Resilient Seated Butterfly Valves
High Performance Butterfly Valves
Triple Offset Butterfly Valves
Knife Gate Valves
Ball Valves
Check Valves
Actuators & Control Accessories
High performance valves
McCannalok & Tri Lok
Bray/McCannalok and Tri Lok high performance valves are engineered to perform under the harshest conditions of the industry and can be relied upon to deliver dependability, versatility, and reliability at the most affordable price available.
High pressure
Zero leakage
Metal to metal sealing
A global presence in over 60 countries
Fully integrated and
innovative engineered products
A global presence in over 60 countries around the globe on six continents, Bray has developed a fully integrated and innovative product portfolio engineered to meet the needs and expectations of its customers in the world’s largest and fastest growing economies. These products include standard and severe service butterfly and ball valves, specialty slurry valves, knife gate valves, check valves, pneumatic and electric actuators and controls.
Additionally, Bray double and triple offset valves present enormous cost savings over other types. They offer considerable space savings, usually by a third or more. Being smaller, they are much lighter, up to ten percent. Space and weight savings are oftentimes critical and Bray valves have the advantage.
Scotch Yoke Pneumatic Actuator
Series 98

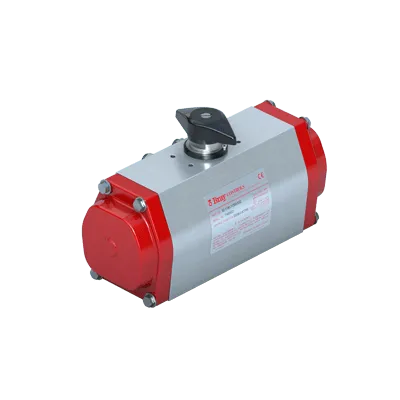

Rack and Pinion Pneumatic Actuator
Series 92/93
Electric Actuator
Series 70
Positioner
Series 6A
Proximity Sensor
Series 54-GS
Proximity Sensor
Series 54-HS
Pneumatic actuators
Series 98
The Series 98 actuators were designed primarily for pneumatic operation to a maximum pressure of 150 psi (10.3 Bar) and for temperature ranges of -50°F (-46°C) to 300°F (+149°C).
Compact design offers a high torque to weight ratio
Modular Design offers easy configuration in the field
Module alignment ensured by precision machined centering rings
Premium epoxy/polyurethane coating as standard
Torque Output ranging from 2,744 to 885,100 in-lb (310 to 100,000 Nm)
Spring End Torque ranging from 2,744 to 445,261 in-lb (310 to 50,306 Nm)
Electric actuators
Series 70
Bray Controls years of proven success in electric actuation, combined with innovative engineering, has produced the Series 70. The Series 70 features on-off or modulating control. This electric actuator for rotary valves delivers highly reliable service.
Stainless steel mechanical travel stops.
Infinitely adjustable travel limit cams.
Optional torque limiting switch system.
Servo operation can be configured to accept standard input signals.
Certified & Trusted
By thousands of companies worldwide
Bray high performance butterfly valves have been assessed by the US Navy, ABS and Bureau Veritas, Den Norske Veritas, Lloyd’s Registrar, CCS and other authorities for various marine and shipbuilding standards including US Navy
MIL-V-24624
MIL-DTL-901E
MIL-STD-167-1A
Bray McCannalok double offset butterfly valves and Tri Lok triple offset butterfly valves compliant with ASME B16.34 and API 609 Category B with API 607 fire-testing are available for ASME B31.3 piping codes often applied in critical offshore production facilities and seawater services.
Certifications
Our performance tested products are in compliance with a variety of global certifications and approvals, including Lloyd's Register, UL, ABS and more.
